Teeth can be sheared off the timing belt during initial start-up after belt replacement, or after a short mileage after replacement. When this problem occurs on the following Euro 6 diesel engine Makes/Models: Opel 2.0; Citroen/ Peugeot 2.0/ 2.2 Blue HDi; Ford 2.0 TDCi / ECOnetic / ECOBlue; Toyota 2.0 D4D, this Continental TechTip will help you find and prevent this problem from occurring.

Problem

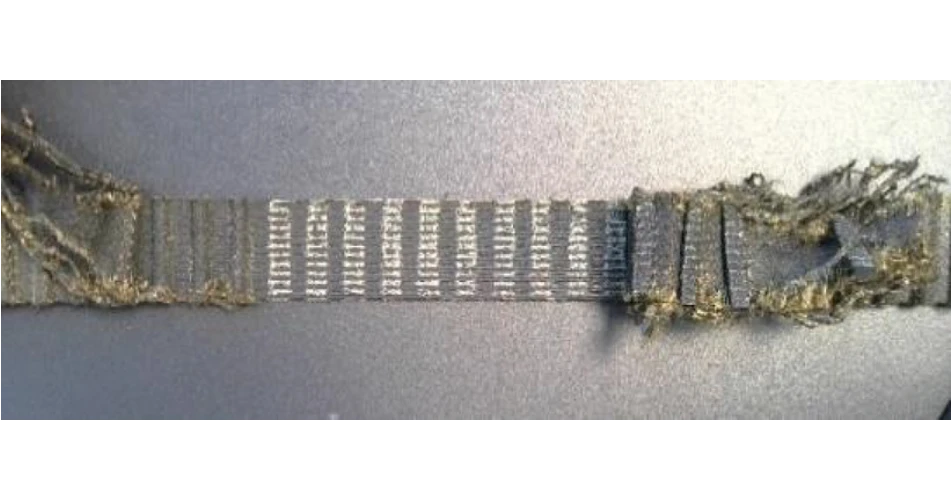

Teeth are sheared off during the starting process or after a short running time, possibly causing engine damage.

Cause

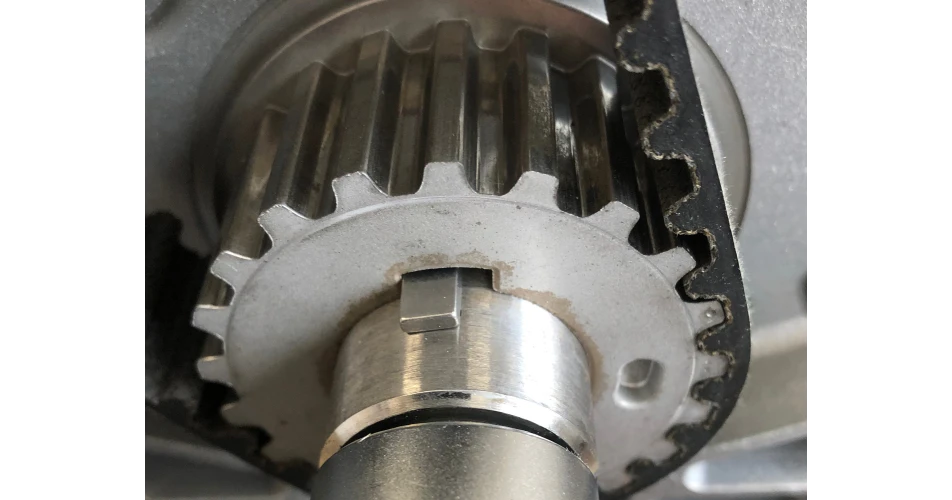

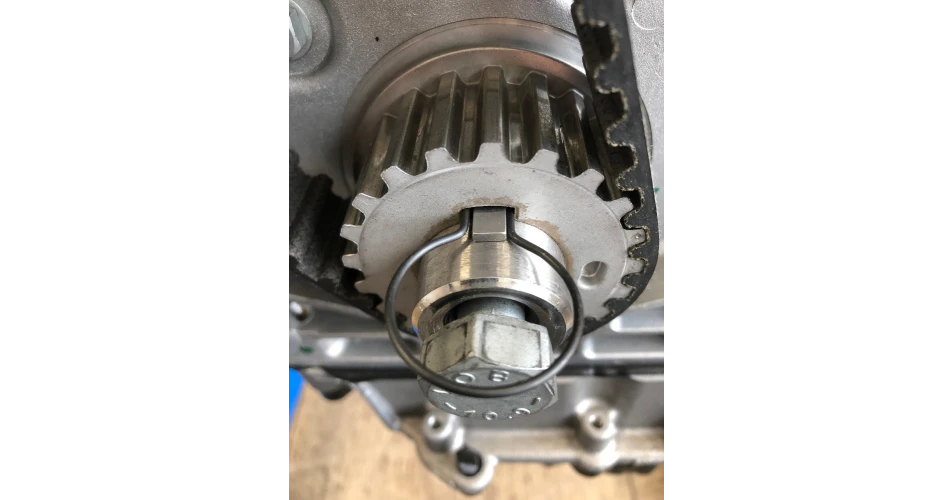

The belt drive is equipped with an oval crankshaft sprocket to reduce power peaks in the belt drive. The crankshaft sprocket is mounted loosely, and can be twisted on the shaft without using the special tool. This, in combination with an incorrectly mounted high-pressure pump, leads to greatly increased force peaks and can cause the timing belt to fail.

Important
When working on the high-pressure pump beforehand, it is essential to ensure the correct installation position!
The camshaft sprocket has two locking points:

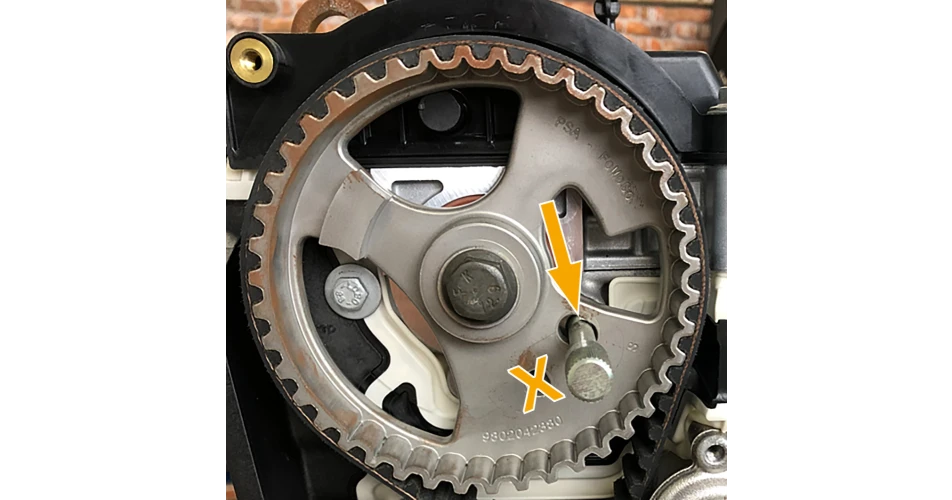

8mm (Fig. 1) > 1st cylinder TDC for changing the timing belt

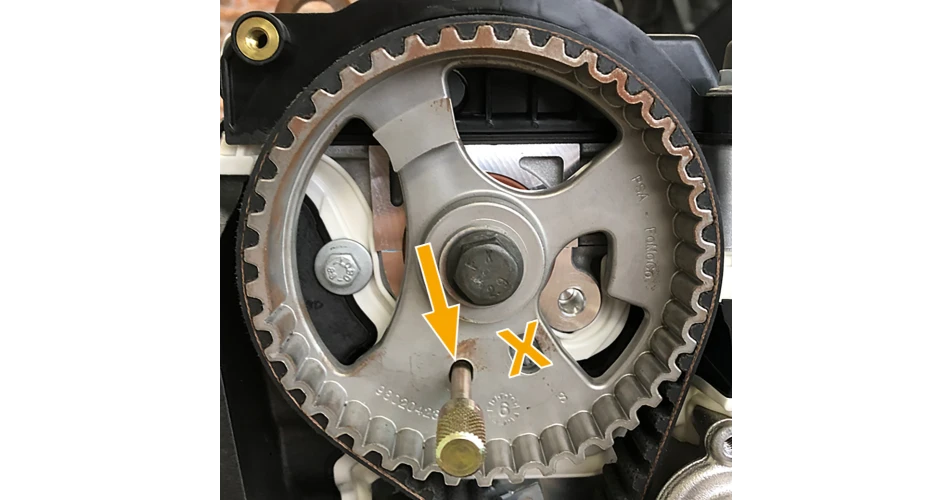

6mm (Fig. 2) > approx. 75° further, for disassembly/assembly of the injection pump.

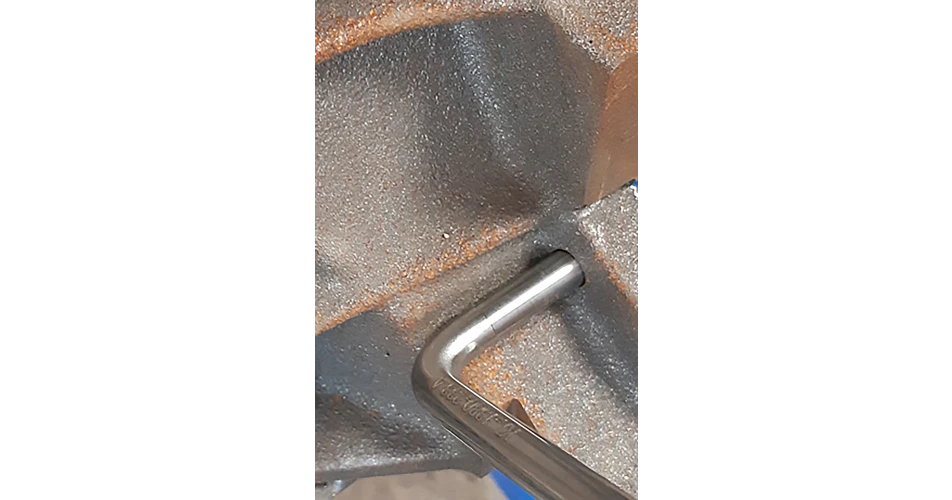

The high-pressure pump itself has markings on the pinion as well as on the housing (Fig. 3), which must be aligned for correct installation. If the high-pressure fuel pump was removed and installed in addition to the timing belt change, first install the timing belt completely and then the high-pressure pump

The difficulty is finding the markings. Used pumps are sometimes wetted with black oil on the gear wheel and the special features of this pump are simply not known to many workshops. A sticker on the injection pump indicates that the special installation instructions must be observed.

Solution
If the high-pressure fuel pump was removed and installed in addition to the timing belt replacement, it is essential to ensure the correct installation sequence! First fit the timing belt completely and then the high-pressure pump. The tensioning process must be carried out according to the vehicle manufacturer’s instructions, using all the special tools intended for this purpose.

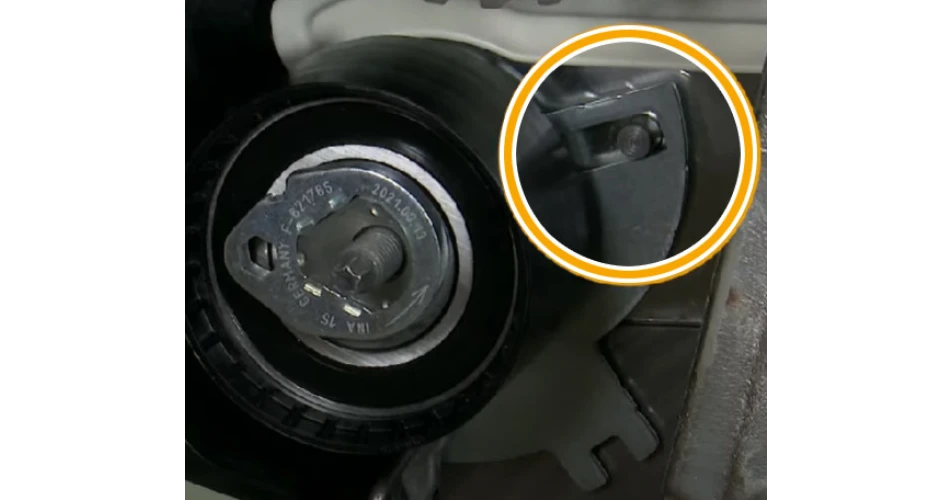

When installing the tensioning pulley, make sure that it is seated on the pin and that the tensioning pulley lock is not removed until the timing belt has been installed. The tensioner pulley must be over-tensioned in the first instance and the engine spun 4 times before the final tension is set. (see installation instructions of the respective vehicle manufacturer).
