Clutch replacement best practice - always replace the CSC

March 06, 2023

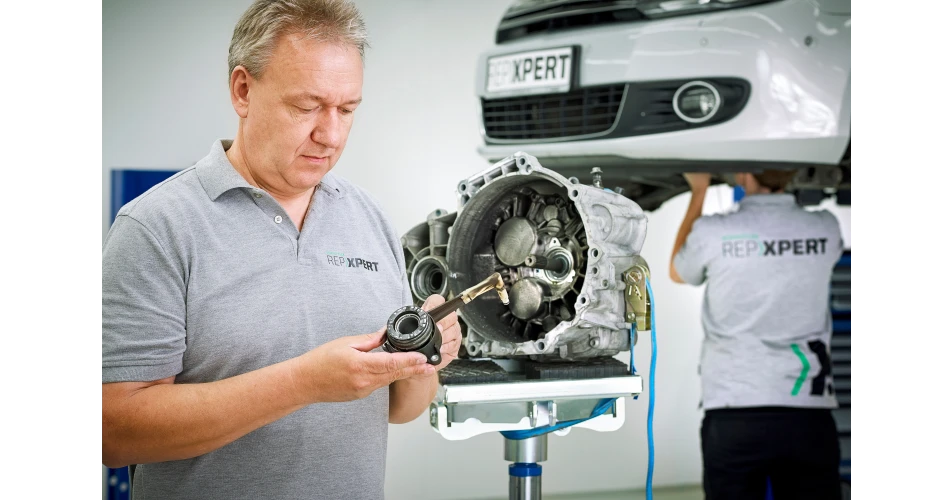

Clutch replacement best practice - always replace the CSC REPXPERT Trainer Ralf Kuhlmey recommends to always replace the CSC when servicing a clutch
Share:

One of the main targets for the modern independent workshop is achieving a ‘first time fix’, as this leads to customer loyalty and an enhanced business reputation. Workshops are working hard to do the job once and do the job right, and this has always been Schaeffler’s philosophy too. So when it comes to replacing a clutch, always, always replace the concentric slave cylinder (CSC).

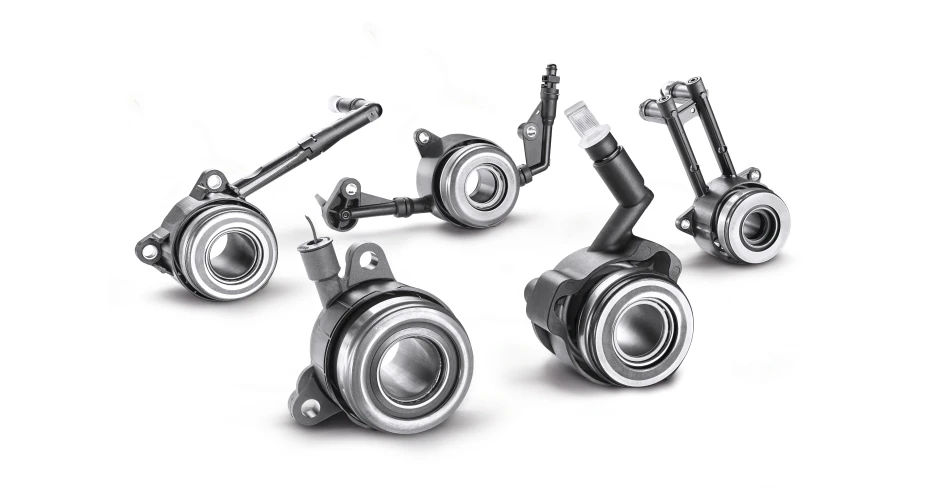

A CSC is, essentially, four clutch components in one: a slave cylinder, pivot/actuation lever, release bearing and guide tube – all in a compact, lightweight unit that is more efficient to produce and install. This cost and weight saving is the main reason vehicle manufacturers (VMs) favour a CSC over an external slave cylinder mechanism.

Engineers, from both the VMs and Schaeffler, know that best practice is to always replace the CSC when replacing the clutch for the following reasons:
  •  The guide tube for the seal and bearing can become contaminated, worn or even corroded in extreme conditions. This will damage the rubber seal when the gearbox is removed, with the seal/bearing assembly travelling over this area to reach the relaxed position.
  • It is commonly accepted that the release bearing assembly should always be replaced when replacing the clutch, and as this is an integral part of a CSC, the CSC must be replaced.
  • The rubber seal could become contaminated with old hydraulic brake/clutch fluid, so the system always needs to be flushed and replenished with new fluid to the correct VM specifications and instructions.
  • There are some intricately-designed elements which can be built into a CSC, such as self-centring bearings, peak torque limiters and anti-vibration units – which all enhance clutch operation and need to be in good order to function correctly.
  • CSCs are regularly modified to improve their performance, so by renewing the unit the vehicle owner can be sure they have the latest and best performing design installed.

If failure of the CSC occurred after a recent repair, not only would clutch operation fail, but the leaking fluid would contaminate the newly fitted clutch and lead to an expensive rectification bill for the workshop.

This would involve having to remove the gearbox again to replace it, probably at the workshop’s expense and probably resulting in a very disgruntled customer.

A growing problem in the aftermarket is the influx of many cheap, copied parts, usually manufactured from inferior quality materials and not in any way tested to conform to the same VM quality standards. To ensure that technicians don’t get stung by sub-standard parts, Schaeffler supplies exactly the same components to the aftermarket as it does to the world’s leading VMs – many of whom operate a ‘zero defects’ policy.

Information on Schaeffler products, fitting instructions, labour times can be found on the REPXPERT workshop portal - www.repxpert.co.uk - the REPXPERT app, or by calling the Schaeffler REPXPERT hotline on  (+44) 1432 265 265.

To read more of this technical article or download the entire article click here.

There are lots more Tech Tips to view, and they are all searchable, on TechTips.ie.
