Problems bleeding VAG cooling circuits

January 08, 2024
Problems bleeding VAG cooling circuits These VAG cooling systems have many valves and circuits
Share:

Continental advises that some Audi, Seat, Skoda and VW 1.4l, 1.6l and 2.0l TDi engines, with an electrically/pneumatically controlled water pump, the cooling system can cause problems, if it is not bled properly.


Problem
Noises or temperature problems can result if the cooling system is incorrectly bled. If this is occurring, there is still air in the system following replacement of the electrically/pneumatically controlled water pump.


Cause
On vehicles with an electrically/pneumatically controlled water pump, the cooling system must be bled after being refilled using a vacuum filling device (Continental Tool Box W01) and an additional diagnostic device with the necessary functionality. The reason for this is the thermal management system, which has additional valves that supply different heating circuits. The valves need to be opened for bleeding so that all heating circuits can be opened and bled.

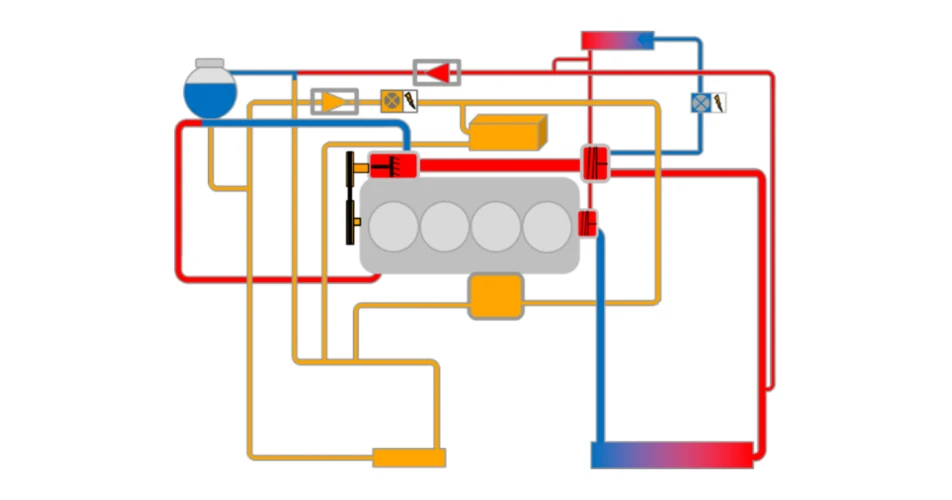

The various circuits are distinguished as follows:
  • Micro-circuit: cooler for exhaust gas recirculation (EGR), heat exchanger for heater and heater support pump
  • High-temperature circuit: coolant regulator, radiator for coolant and coolant pump
  • Low-temperature circuit: charge air cooler, charge air cooling pump and cooler for charge air cooling circuit

Solution
It is essential to follow the vehicle manufacturer’s instructions and information when carrying out repair or maintenance work on the cooling system. The cooling system must always be bled with the help of a vehicle diagnostic tester using its “guided” function.

To download the original technical bulletin click here.

There are lots more technical bulletins like this to view, and they are all searchable, on TechTips.ie.
Problems bleeding VAG cooling circuits There are lots more technical bulletins to view, and they are all searchable, on TechTips.ie
